1. Basic Parameters and Appearance Design

WuJie ZhiYin is a screen-equipped 6-dot Braille display with a built-in operating system. It supports offline use and can be integrated into museum, library, and school teaching systems. It allows offline operation via SD card insertion and can also connect to computers and smartphones via Bluetooth.

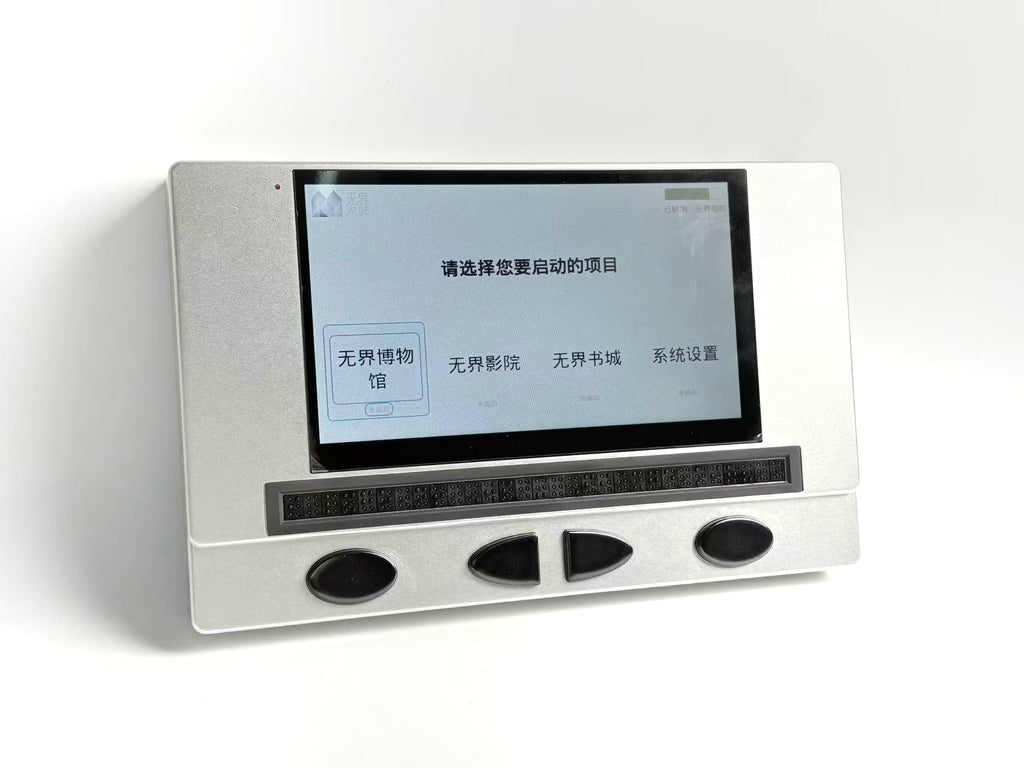

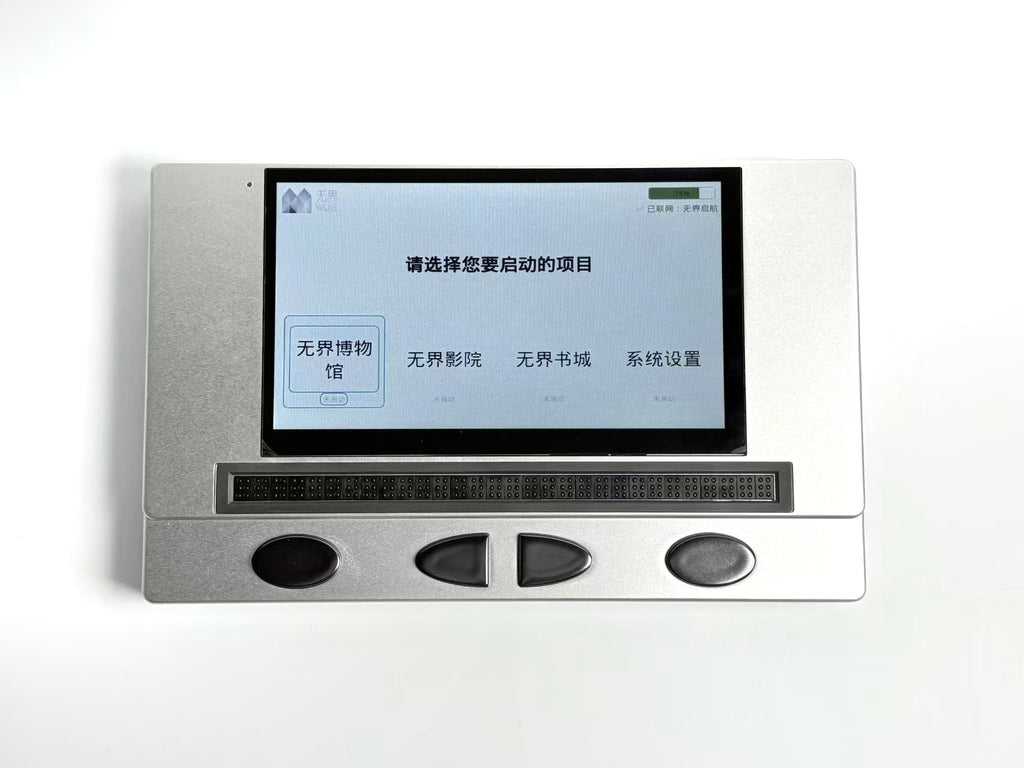

Device specifications: 244 mm × 152 mm × 27 mm, weight 1065 g. From left to right on the top: SD card slot, Type-C charging port, sliding power switch. From top to bottom on the device: 7-inch HD screen, single-row 30-cell 6-dot Braille display module, four main function buttons (left to right: Cancel, Page Up, Page Down, OK).

Core perception feature: During use, voice synchronously announces on-screen content, and Braille dots update in real time with the screen display, enabling multi-sensory integrated perception for visually impaired users.

2. Basic Operations and Battery Status Alerts

  1. Power Supply and Charging: Inserting an SD card enables fully offline use, or it can connect to external devices via Bluetooth. When charging, the device shows a green light, a charging icon appears next to the battery indicator, and a voice prompt says “Charging started.”

  2. Low Battery Alerts: At low battery levels of 20%, 10%, 5%, and 1%, the device will provide real-time voice announcements to remind users to charge promptly.

  3. Core Operation Buttons: The Cancel, Page Up, Page Down, and OK buttons below the Braille module are core controls, enabling all operations including function switching, content browsing, and confirmation selection, suitable for full-scenario use.

  4. Reading Precautions:

    Wait until Braille dot refresh is complete before touching to read. Touching the display area during refresh may cause abnormal Braille dot elevation.

    If Braille dots display incompletely due to accidental touch, press the Page Up and Page Down buttons simultaneously to refresh.

3. WuJie Museum

The WuJie Museum function supports both offline and online use, with its core being signal reception technology. It is designed for visually impaired users visiting museums, science centers, and similar venues, automatically receiving detailed exhibit information. Usage instructions:

  1. Signal Reception: When a visually impaired user carrying the device enters within 3–5 meters of an exhibit, the supporting signal transmitter automatically sends detailed exhibit information to the device, and the screen displays related information synchronously.

  2. Page Layout: Upon entering the WuJie Museum page, the far-left side of the screen displays basic Braille display status (Bluetooth connection, battery level).

  3. Multi-Exhibit Selection: If multiple exhibits are in one area, a list of exhibits appears in the middle of the screen. Users can switch between exhibits of interest using the Page Up/Down buttons.

  4. Viewing Details: The right side of the screen displays the exhibit name and image. Press the OK button to enter the exhibit details page for more comprehensive information. Braille dots update synchronously, allowing users to perceive exhibit information instantly using the Page Up/Down buttons.

4. WuJie Cinema

WuJie Cinema is divided into “Local Video Library” and “Online Video Library.” The local library supports offline use, while the online library requires an internet connection. Video resources are synchronized at: https://video.wujieqh.com/. Usage instructions:

  1. Local Video Library: In offline mode, press OK to enter the local video library. The system automatically loads the local video list. Navigate videos using the Up/Down buttons, or tap the search icon at the top, then speak the full movie title after the beep to search. Select a video and press OK to play. During playback, use Page Up/Down to adjust volume, and press Cancel to exit and return.

  2. Online Video Library: Available when the device is connected to the internet. The page synchronizes video resources from the above website, where users can also upload various video resources. Locate the desired video and click download—the resource will be saved to the local video library for viewing anytime, anywhere.

5. WuJie Bookstore

WuJie Bookstore is divided into two sections: “Bookshelf” and “Bookstore.” The Bookshelf supports offline reading, while the Bookstore requires an internet connection to download books. Usage instructions:

  1. Offline Reading (Bookshelf): When not connected to Wi-Fi, only books on the Bookshelf can be read. Press OK to enter the Bookshelf, select a book using the Up/Down buttons, and press OK to start reading. During reading, use Up/Down buttons to turn pages; the Braille module updates content synchronously. Press Cancel to exit when finished.

  2. Online Download (Bookstore): After connecting to the internet, enter the Bookstore section, select a book using the Up/Down buttons, and press “Download.” Downloaded books are automatically saved to the Bookshelf for offline reading.

6. System Settings

System settings allow Wi-Fi connection, volume adjustment, speech rate adjustment, and font size adjustment. All settings are automatically saved upon pressing the Back button. Specific methods:

  1. Wi‑Fi Connection: Enter System Settings, open “Network Settings,” and enable pairing mode. On your phone, connect to the product’s dedicated Wi‑Fi (Name: wujie-setup). Return to the product’s main page, scan the on-screen QR code with your phone camera to enter the network configuration interface. On your phone, enter the nearby Wi‑Fi name and password, then tap Connect. The product’s main page will display “Wi‑Fi connected successfully.”

  2. Volume Settings: Enter System Settings, press OK to select “Volume Settings,” adjust volume using Up/Down buttons (range: 0%–100%), then press Back to save automatically.

  3. Speech Rate Settings: Enter System Settings, press OK to select “Speech Rate Settings,” adjust speech rate using Up/Down buttons (range: 0.5×–4× speed), then press Back to save automatically.

  4. Font Settings: Enter System Settings, press OK to select “Font Settings,” adjust font size using Up/Down buttons (options: Extra Small, Small, Normal, Large, Extra Large), then press Back to save automatically.

Speech Rate Settings: Enter System Settings, press OK to select “Speech Rate Settings,” adjust speech rate using Up/Down buttons (range: 0.5×–4× speed), then press Back to save automatically.

Font Settings: Enter System Settings, press OK to select “Font Settings,” adjust font size using Up/Down buttons (options: Extra Small, Small, Normal, Large, Extra Large), then press Back to save automatically.
